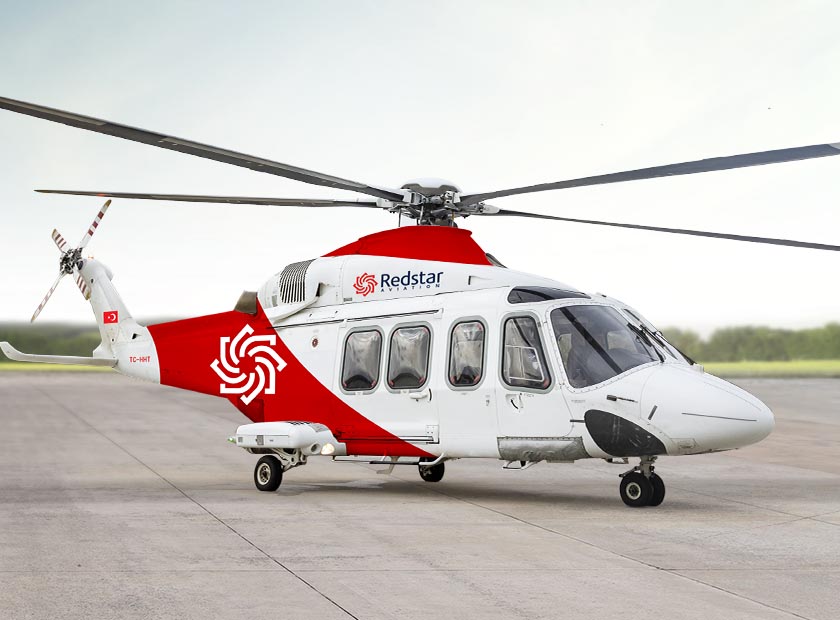

Leonardo AW 139

A true working horse even in the most challenging environment, the mid-sized twin-engined Leonardo AW 139 is one of the most reliable and safe rotary wing aircraft on the market. Used for on-shore and off-shore work, Redstar Aviation’s fleet of helicopters delivers much need support to remote locations.

Standing out for the impeccable offshore support it provides, Redstar Aviation’s Leonardo AW 139 fleet performs all the tasks that may be needed within the framework of our on-shore & off-shore services, ranging from emergency medical evacuation to logistics and personnel supply. With a carrying capacity of up to 15 passengers, the Leonardo AW 139 has a range of 570nm and a capacity to stay in the air for up to 5 hours. In the aircraft with Emergency Medical Services (EMS) configuration, 1-4 stretchers can be configured for medical transfer.

Top-Level Performance

Ideally suited to the offshore operations, combining superior payload and range, the Leonardo AW 139 easily outperforms its competition, making it the perfect addition to Redstar Aviation’s fleet.

State-of-the-art Safety Features

The latest safety design features alongside advanced avionics makes this aircraft the number one choice for off-shore missions.

Technical Specification

System Specification

General

CAPACITY

Crew: 2

Passenger : 12 Pax

Ems Configuration : 1-4 Stretcher

Max. Endurance: 5 H 13 Min

General

Performance & Dimensions

Performance & Dimensions

RANGE

Maximum range (ISA, MGW, SL): 1032 KM 557 NM
(with auxiliary fuel - No reserve)

Maximum Cruise Speed (SL, MCP): 306 KM (165 kt)

OPERATING ALTITUDE

HIGE (TOP): 4682 m (15360 ft)

FUSELAGE

Length: 13.53 m (44.40 ft), Overall Length: 16.62 m (54.55 ft), Width: 2.25 m (7.40 ft),
Overall Width: 4.21 m (13.83 ft), Height: 3.57 m (11.71 ft), Overall Height: 4.98m (16.36 ft)

MAIN ROTOR

Diameter: 13.80 m (45.72 ft)

TAIL ROTOR

Diameter: 2.70 m (8.86 ft)
